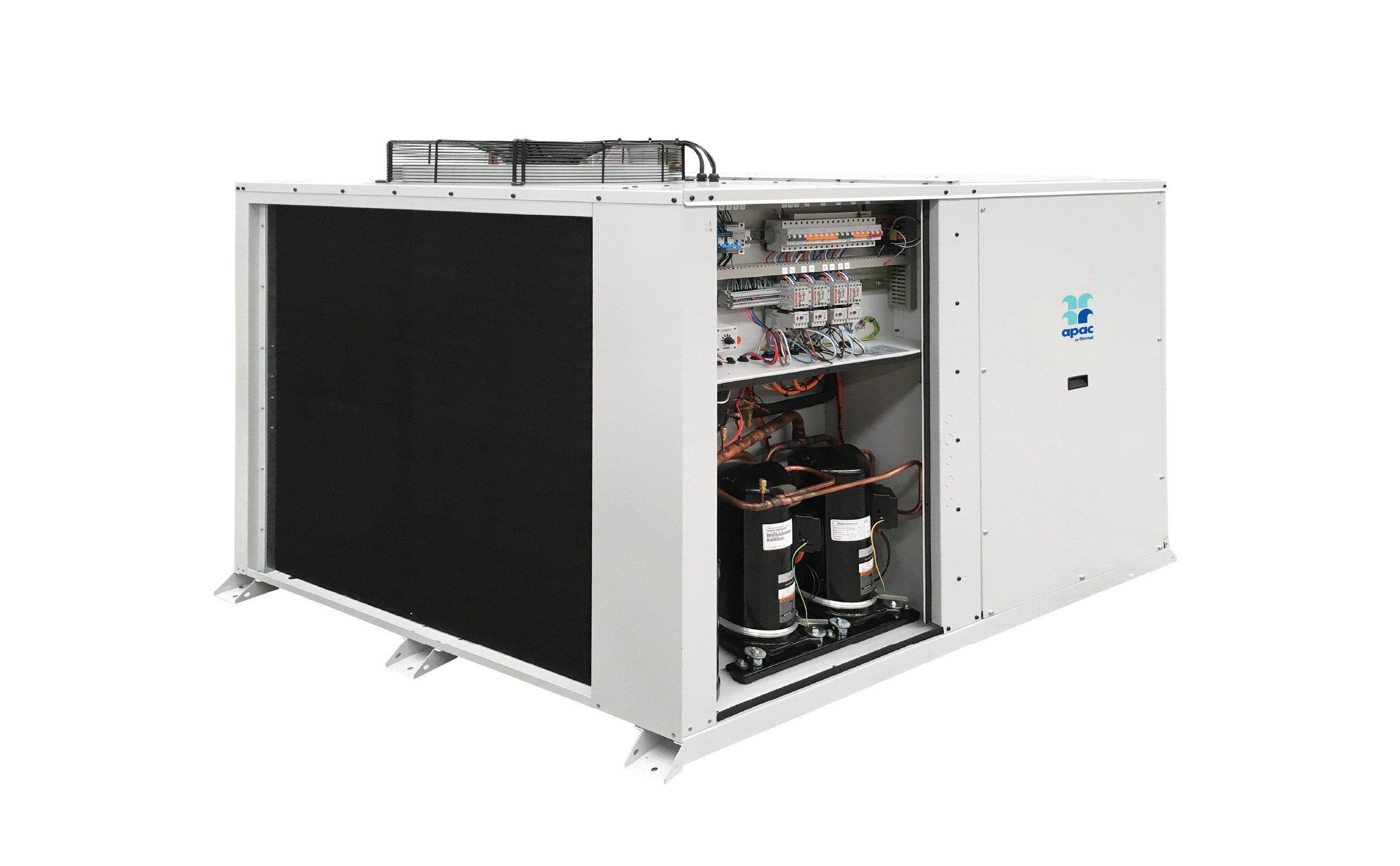

Compact Rooftop Package Unit
Compact Rooftop Package Unit
The APAC Compact Rooftop Package Unit is a high-performance HVAC solution designed for commercial applications where space and efficiency are key. Equipped with EC plug indoor fans capable of up to 500Pa static pressure and an EC hybrid outdoor axial fan, it delivers reliable, consistent airflow while maintaining precise temperature control. TXV refrigerant control ensures efficient operation, providing optimal comfort across a range of building types.
Built for durability and long-term reliability, the unit features condenser coil anti-corrosion protection, 25mm PE closed-cell insulation for improved thermal performance, and a phase-fail protection relay for added system safety. Fully MEPS certified, the APAC Compact Rooftop Package Unit combines energy efficiency, robust performance, and compliance, making it an ideal solution for commercial HVAC installations.

Locate Your Nearest Store
Tandem scoll compressors for high system efficiency at full and part load
35% smaller footprint
25% less gas charge
42% less components
Features
- EC plug indoor fans with high static capability up to 500pa
- EC hybrid outdoor axial fan
- TXV refrigerant control
- Condenser coil anti-corrosion protection
- 25mm PE closed cell insulation
- Phase fail protection relay
- MEPS certified
Factory options customised to order
- Compressor soft starter
- High static pressure outdoor fans
- Double layered insulation to indoor section
- Capacity modulation control
- Outdoor coil(s) with anti-corrosion post-treatment
- Indoor coil(s) with anti-corrosion post-treatment
- Outdoor coil guards, powder coated
- Discharge and suction isolation valves
- Liquid line isolation valves across filter drier
- Cable markers
- Fire relay
- APAC Supply and Return connections
- High Level Interface (HLI) Modbus connectivity
- Integrated filter frame 50mm
- Economiser – dampers and actuators (no controls)
Factory options engineered to order
- 316 stainless steel cabinet, unpainted
- 304 stainless steel cabinet, powder coated
- Stainless steel external fixings
- Outdoor coil(s) copper / copper
- Indoor coil(s) copper / copper
- Power supply – no neutral (415/3/50)
- Ductable air off in lieu of standard axial
The product information on this website (comprising product brochures, warranty information, installation manuals, diagrams, specifications and representations) relates to current products. This information may be different for superseded products. For superseded products please contact APAC to confirm product information.
PDF
-
APAC Brochure Preview
-
APAC Compact Rooftop Package Unit (RTU 28-45kW) Specification Guide Preview
-
Technical Binder - APAC P038AHR3SA-TB Preview
-
Technical Binder - APAC P043AHR3SA-TB Preview
-
Technical Binder - APAC P048AHR3SA-TB Preview
-
Technical Binder - APAC P028AHR3SA-TB Preview
-
Technical Binder - APAC P033AHR3SA-TB Preview

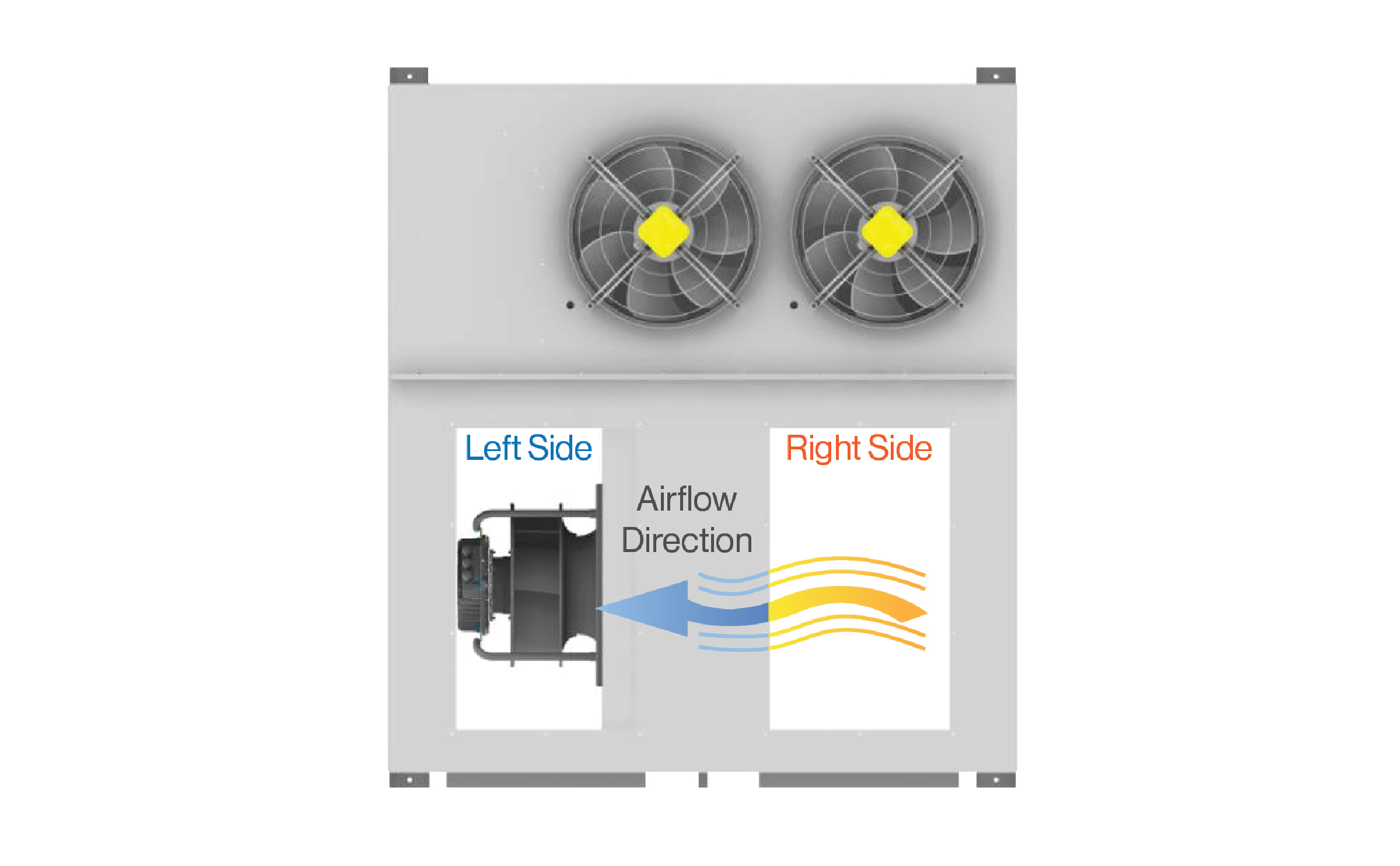

![APAC - Compact Rooftop Package Unit Supply Air [Standard] (overlays)](https://www.apacair.com.au/wp-content/uploads/sites/8/2020/12/APAC-Compact-roof-top-package-unit-Left-hand-supply-air-standard-Overlays.jpg)

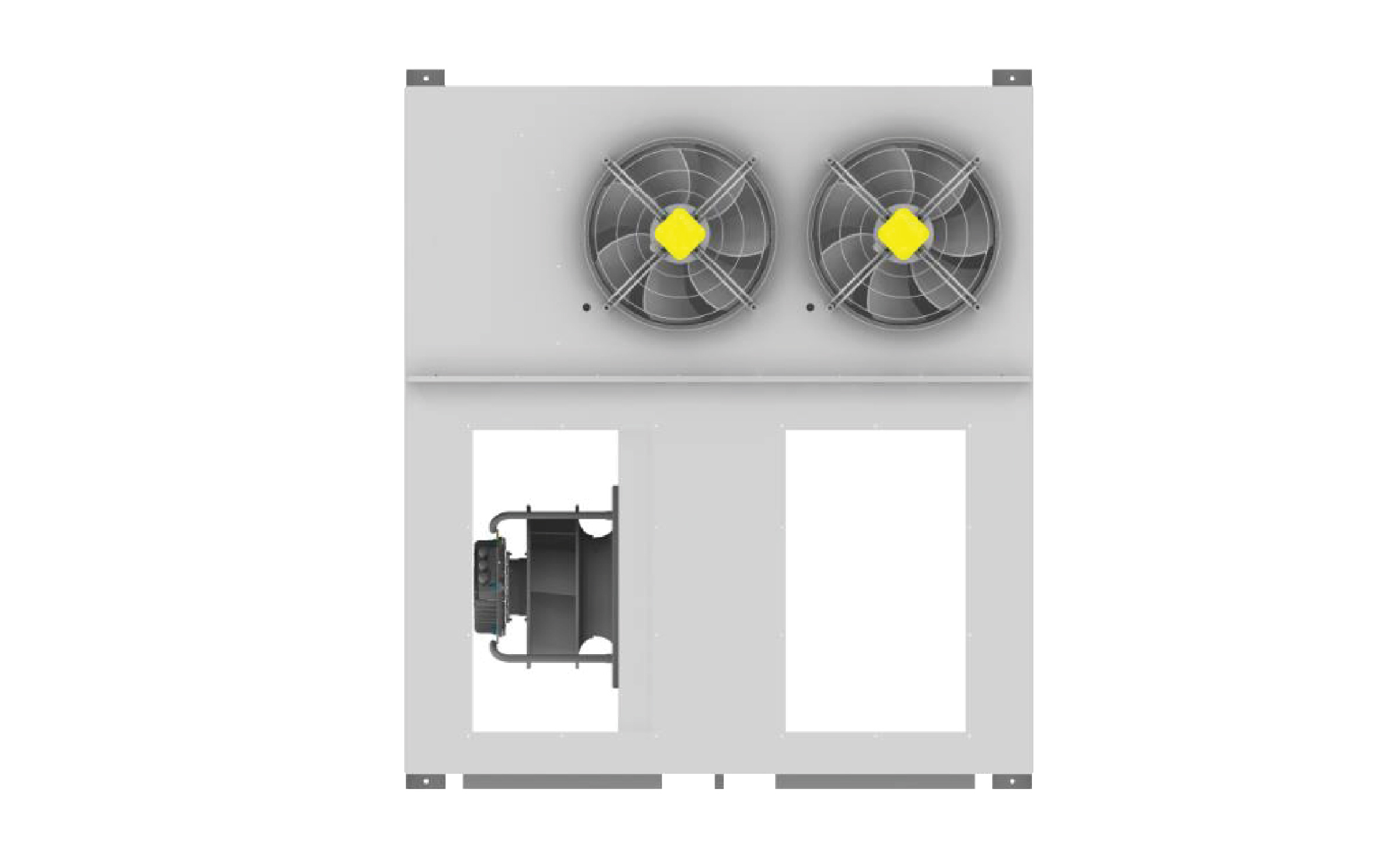

![APAC - Compact Rooftop Package Unit Supply Air [Standard] (left)](https://www.apacair.com.au/wp-content/uploads/sites/8/2020/12/APAC-Compact-roof-top-package-unit-Left-hand-supply-air-standard.jpg)

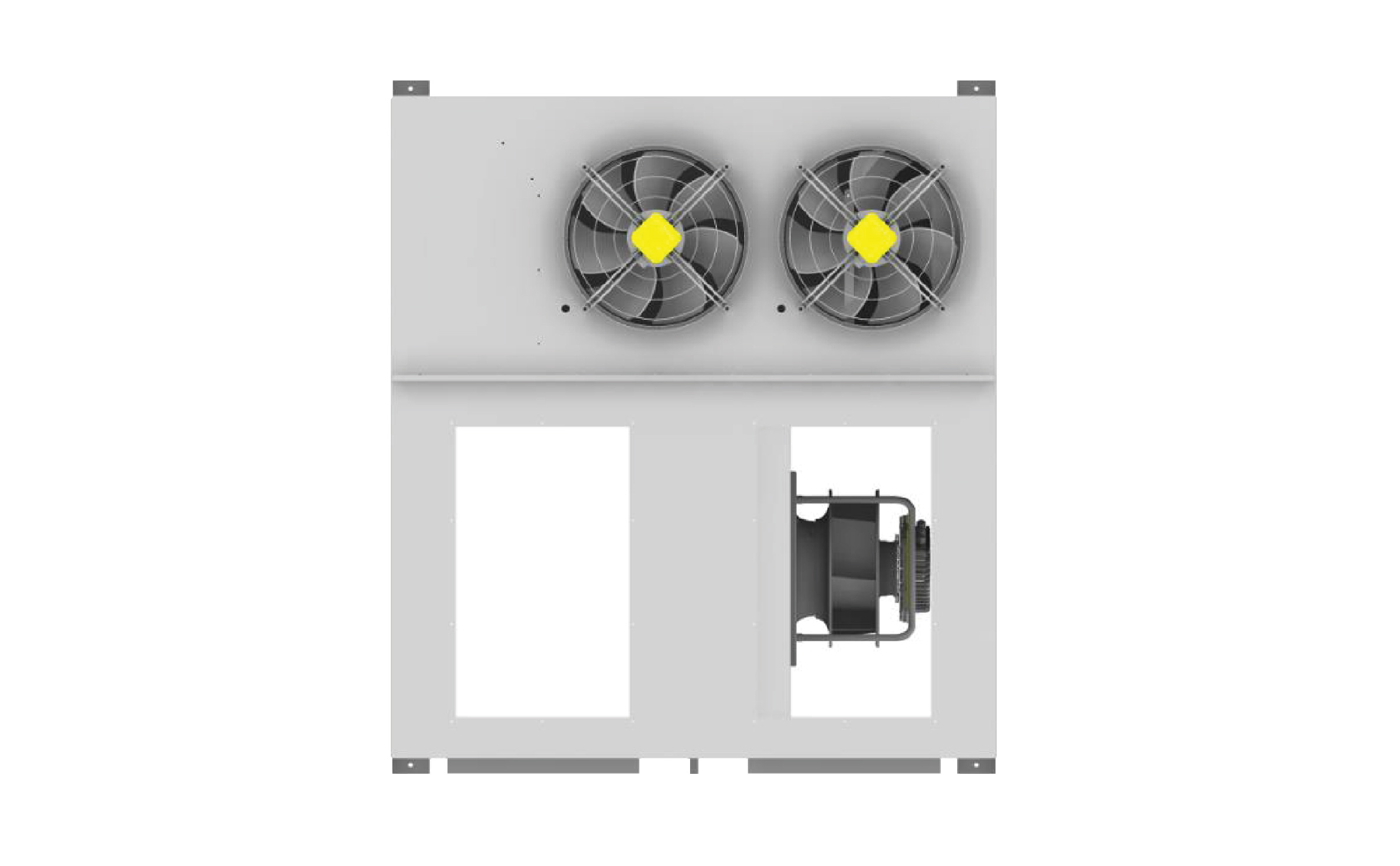

![APAC - Compact Rooftop Package Unit Supply Air [Optional] (right)](https://www.apacair.com.au/wp-content/uploads/sites/8/2020/12/APAC-Compact-roof-top-package-unit-Right-hand-supply-air-optional.jpg)
